Supply-demand balance

Provide a quick supply-versus-demand balance by zone using the configured EPM input bundle. The notebook loads demand and generation files from config.csv, filters active plants, estimates their capacity factors, and visualizes capacity and energy against demand.

Step 1 – Configure the working folder

Import core libraries and point to the folder_input you want to analyze.

from pathlib import Path
import csv
import sys
import pandas as pd


folder_input = 'data_capp'

Step 2 – Resolve data paths and load raw inputs

Find the project root, add the plotting helpers to the Python path, and load demand and generation tables referenced in config.csv.

Step 2a – Locate the project root and helper loaders

# Locate the repository root that contains the working `epm` directory.
def locate_project_root(marker: str = "epm") -> Path:
    """Return the nearest ancestor containing the marker directory."""
    for directory in [Path.cwd(), *Path.cwd().parents]:
        candidate = directory / marker
        if candidate.is_dir():
            return directory
    raise FileNotFoundError("Could not find 'epm' directory above the current working directory.")


# Read CSV files safely using the standard library to dodge pandas engine crashes.
def load_csv(path: Path) -> pd.DataFrame:
    """Read a CSV using DictReader to avoid pandas engine crashes."""
    with path.open(newline='', encoding='utf-8-sig') as handle:
        reader = csv.DictReader(handle)
        records = list(reader)
    if not records:
        return pd.DataFrame(columns=reader.fieldnames or [])
    return pd.DataFrame(records)


project_root = locate_project_root()
input_root = project_root / "epm" / "input" / folder_input

# Add `epm/postprocessing` to the Python path so plotting helpers can be imported.
postprocessing_root = project_root / "epm"
if str(postprocessing_root) not in sys.path:
    sys.path.append(str(postprocessing_root))

Step 2b – Resolve config references

config_path = input_root / "config.csv"
if not config_path.exists():
    raise FileNotFoundError(f"Missing config file at {config_path}")

config_lookup = (
    pd.read_csv(config_path)
      .loc[:, ["paramNames", "file"]]
      .dropna(subset=["paramNames", "file"])
      .set_index("paramNames")["file"]
)


# Resolve a parameter name to the actual CSV path referenced in config.csv.
def resolve_param_path(param_name: str) -> Path:
    """Resolve a parameter name to a CSV path via config.csv."""
    relative = config_lookup.get(param_name)
    if relative is None:
        raise KeyError(f"{param_name} not found in {config_path}")
    resolved = input_root / relative
    if not resolved.exists():
        raise FileNotFoundError(
            f"{param_name} points to {resolved} but the file does not exist."
        )
    return resolved

Step 2c – Load demand and generation inputs

demand_peak_path = resolve_param_path("pDemandForecast")
generation_path = resolve_param_path("pGenDataInput")

demand_peak_df = pd.read_csv(demand_peak_path)

# Generation CSV occasionally crashes pandas; use custom loader.
generation_df = load_csv(generation_path)

# Prepare generation
generation_df['f'] = generation_df['tech'].astype(str) + '-' + generation_df['fuel'].astype(str)
generation_df.drop(columns=['tech', 'fuel'], inplace=True)
generation_df.rename({'f': 'fuel'}, inplace=True, axis=1)

Step 3 – Prepare demand and generation summaries

Clean the datasets, apply capacity-factor fallbacks, and build zone-level capacity and energy mixes through the modelling years up to TARGET_YEAR.

Step 3a – Prepare demand tables and helper parameters

import numpy as np

HOURS_PER_YEAR = 8_760
MW_TO_GWH = HOURS_PER_YEAR / 1_000
TARGET_YEAR = 2040


# Load optional parameters referenced in config.csv; return an empty DataFrame if absent.
def load_param_csv(param_name: str) -> pd.DataFrame:
    """Return the DataFrame for a config parameter or an empty DataFrame when missing."""
    try:
        return load_csv(resolve_param_path(param_name))
    except (KeyError, FileNotFoundError):
        return pd.DataFrame()


# Demand prep
value_columns = [c for c in demand_peak_df.columns if c not in {"zone", "type"}]
model_years = sorted(year for year in map(int, value_columns) if year <= TARGET_YEAR)
if not model_years:
    raise ValueError(f"No demand columns found for years up to {TARGET_YEAR}.")

demand_columns = [str(year) for year in model_years]

for column in demand_columns:
    demand_peak_df[column] = pd.to_numeric(demand_peak_df[column], errors='coerce')

demand_peak_df["zone"] = demand_peak_df["zone"].astype(str).str.strip()
demand_peak_df["type"] = demand_peak_df["type"].astype(str).str.strip()

zcmap_df = load_param_csv("zcmap")
if not zcmap_df.empty and "zone" in zcmap_df.columns:
    valid_zones = zcmap_df["zone"].astype(str).str.strip().unique().tolist()
else:
    valid_zones = demand_peak_df["zone"].unique().tolist()
valid_zones_set = set(valid_zones)

demand_peak_df = demand_peak_df[demand_peak_df["zone"].isin(valid_zones_set)].copy()


# Convert demand tables into long format by year.
def reshape_demand(demand_type: str) -> pd.DataFrame:
    """Return long-form demand series for the requested demand type."""
    subset = demand_peak_df.loc[demand_peak_df["type"] == demand_type, ["zone", *demand_columns]].copy()
    if subset.empty:
        return pd.DataFrame(columns=["zone", "year", "value"])
    melted = subset.melt(id_vars="zone", value_vars=demand_columns, var_name="year", value_name="value")
    melted["year"] = melted["year"].astype(int)
    melted["value"] = pd.to_numeric(melted["value"], errors='coerce')
    return melted.dropna(subset=["value"])


peak_demand = reshape_demand("Peak")
energy_demand = reshape_demand("Energy")

Step 3b – Clean the generator roster

generation_df["Status"] = pd.to_numeric(generation_df["Status"], errors='coerce')
generation_df["Capacity"] = pd.to_numeric(generation_df["Capacity"], errors='coerce')
for column in ["gen", "zone", "tech", "fuel"]:
    if column in generation_df.columns:
        generation_df[column] = generation_df[column].astype(str).str.strip()

if "zone" in generation_df.columns:
    generation_df = generation_df[generation_df["zone"].isin(valid_zones_set)].copy()

active_status = [1, 2]
generation_active = generation_df[generation_df["Status"].isin(active_status)].copy()
generation_active["Status"] = generation_active["Status"].astype(int)
generation_active["Capacity"] = generation_active["Capacity"].fillna(0)

min_year = min(model_years)
max_year = max(model_years)
generation_active["start_year"] = pd.to_numeric(generation_active.get("StYr"), errors='coerce').fillna(min_year)
generation_active["retire_year"] = pd.to_numeric(generation_active.get("RetrYr"), errors='coerce').fillna(max_year)

Step 3c – Build capacity-factor lookup tables

# Tidy generator availability tables and compute an average capacity factor per grouping.
def tidy_availability(frame: pd.DataFrame, group_cols: list[str]) -> pd.DataFrame:
    """Return averaged capacity factors for the provided grouping columns."""
    if frame is None or frame.empty:
        return pd.DataFrame(columns=group_cols + ["capacity_factor"])
    data = frame.copy()
    for column in group_cols:
        if column in data.columns:
            data[column] = data[column].astype(str).str.strip()
    value_cols = [c for c in data.columns if c not in group_cols]
    for column in value_cols:
        data[column] = pd.to_numeric(data[column], errors='coerce')
    if not value_cols:
        data["capacity_factor"] = np.nan
    else:
        data["capacity_factor"] = data[value_cols].mean(axis=1, skipna=True)
    return data[group_cols + ["capacity_factor"]].dropna(subset=["capacity_factor"])


def load_static_table(path: Path, skip_prefixes: tuple[str, ...] = ("#",)) -> pd.DataFrame:
    """Return a DataFrame after skipping rows that start with comment-like prefixes."""
    def filtered_lines():
        with path.open(newline='', encoding='utf-8-sig') as handle:
            for raw in handle:
                stripped = raw.strip()
                if not stripped:
                    continue
                if any(stripped.startswith(prefix) for prefix in skip_prefixes):
                    continue
                yield raw
    reader = csv.DictReader(filtered_lines())
    records = list(reader)
    if not records:
        return pd.DataFrame(columns=reader.fieldnames or [])
    return pd.DataFrame(records)


availability_custom = tidy_availability(load_param_csv("pAvailability"), ["gen"])
availability_default = tidy_availability(load_param_csv("pAvailabilityDefault"), ["zone", "tech", "fuel"])

custom_cf = availability_custom.set_index("gen")["capacity_factor"].to_dict()
default_cf = availability_default.set_index(["zone", "tech", "fuel"])["capacity_factor"].to_dict()
default_cf_tf = availability_default.groupby(["tech", "fuel"], observed=False)["capacity_factor"].mean().to_dict()
default_cf_f = availability_default.groupby(["fuel"], observed=False)["capacity_factor"].mean().to_dict()
global_cf = availability_default["capacity_factor"].mean() if not availability_default.empty else np.nan


# Choose the best-matching capacity factor for each generator, falling back gracefully.
def capacity_factor_lookup(row: pd.Series) -> float:
    """Return the most granular capacity factor available for the generator."""
    generator = row.get("gen", "")
    if generator in custom_cf:
        return custom_cf[generator]

    zone, tech, fuel = row.get("zone"), row.get("tech"), row.get("fuel")
    key_zone = (zone, tech, fuel)
    if key_zone in default_cf:
        return default_cf[key_zone]

    key_tf = (tech, fuel)
    if key_tf in default_cf_tf:
        return default_cf_tf[key_tf]

    if fuel in default_cf_f:
        return default_cf_f[fuel]

    return float(global_cf) if pd.notna(global_cf) else 0.5


# Evaluate generator capacity factors and map plotting colors.
generation_active["capacity_factor"] = generation_active.apply(capacity_factor_lookup, axis=1)
generation_active["capacity_factor"] = generation_active["capacity_factor"].fillna(0)
generation_active["zone"] = generation_active.get("zone", "").astype(str).str.strip()

postprocessing_static = project_root / "epm" / "postprocessing" / "static"
colors_path = postprocessing_static / "colors.csv"
fuels_path = postprocessing_static / "fuels.csv"

color_table = load_static_table(colors_path, skip_prefixes=("#",))
required_color_cols = {"Processing", "Color"}
if required_color_cols.issubset(color_table.columns):
    clean_colors = (
        color_table.loc[:, ["Processing", "Color"]]
        .dropna(subset=["Processing", "Color"])
    )
    clean_colors["Processing"] = clean_colors["Processing"].astype(str).str.strip()
    clean_colors["Color"] = clean_colors["Color"].astype(str).str.strip()
    clean_colors = clean_colors[(clean_colors["Processing"] != "") & (clean_colors["Color"] != "")]
    color_lookup = clean_colors.set_index("Processing")["Color"].to_dict()
else:
    color_lookup = {}

fuel_table = load_static_table(fuels_path, skip_prefixes=("#", "Order of Processing"))
required_fuel_cols = {"EPM_Fuel", "Processing"}
if required_fuel_cols.issubset(fuel_table.columns):
    clean_fuels = (
        fuel_table.loc[:, ["EPM_Fuel", "Processing"]]
        .dropna(subset=["EPM_Fuel", "Processing"])
    )
    clean_fuels["EPM_Fuel"] = clean_fuels["EPM_Fuel"].astype(str).str.strip()
    clean_fuels["Processing"] = clean_fuels["Processing"].astype(str).str.strip()
    clean_fuels = clean_fuels[
        (clean_fuels["EPM_Fuel"] != "") & (clean_fuels["Processing"] != "")
    ]
    fuel_mapping = clean_fuels.set_index("EPM_Fuel")["Processing"].to_dict()
    fuel_order = list(dict.fromkeys(clean_fuels["Processing"]))
else:
    fuel_mapping = {}
    fuel_order = []
fuel_ordering = fuel_order if fuel_order else None

generation_active["fuel_processed"] = generation_active["fuel"].map(fuel_mapping).fillna(generation_active["fuel"])
missing_categories = set(generation_active["fuel_processed"].unique()).difference(color_lookup)
for category in missing_categories:
    color_lookup[category] = "#999999"

Step 3d – Expand generators by planning year and summarize mixes

# Determine which planning years each generator is online.
def compute_active_years(row: pd.Series) -> list[int]:
    """Return the planning years during which the plant is online."""
    return [year for year in model_years if year >= row["start_year"] and year <= row["retire_year"]]


generation_active["active_years"] = generation_active.apply(compute_active_years, axis=1)
generation_active = generation_active[generation_active["active_years"].map(len) > 0]

if generation_active.empty:
    capacity_mix = pd.DataFrame(columns=["zone", "fuel", "year", "value"])
    energy_mix = pd.DataFrame(columns=["zone", "fuel", "year", "value"])
else:
    generation_yearly = generation_active.explode("active_years").rename(columns={"active_years": "year"})
    generation_yearly["year"] = generation_yearly["year"].astype(int)

    capacity_mix = (
        generation_yearly.groupby(["zone", "fuel_processed", "year"], observed=False)["Capacity"]
        .sum()
        .reset_index()
        .rename(columns={"fuel_processed": "fuel", "Capacity": "value"})
    )

    energy_mix = (
        generation_yearly.assign(energy_gwh=lambda df: df["Capacity"] * df["capacity_factor"] * MW_TO_GWH)
        .groupby(["zone", "fuel_processed", "year"], observed=False)["energy_gwh"]
        .sum()
        .reset_index()
        .rename(columns={"fuel_processed": "fuel", "energy_gwh": "value"})
    )

capacity_mix = capacity_mix[capacity_mix["zone"].isin(valid_zones_set)]
energy_mix = energy_mix[energy_mix["zone"].isin(valid_zones_set)]
peak_demand = peak_demand[peak_demand["zone"].isin(valid_zones_set)]
energy_demand = energy_demand[energy_demand["zone"].isin(valid_zones_set)]

Step 4 – Plot capacity and energy balances

Use the EPM post-processing helper to compare supply stacks with peak and annual demand across zones.

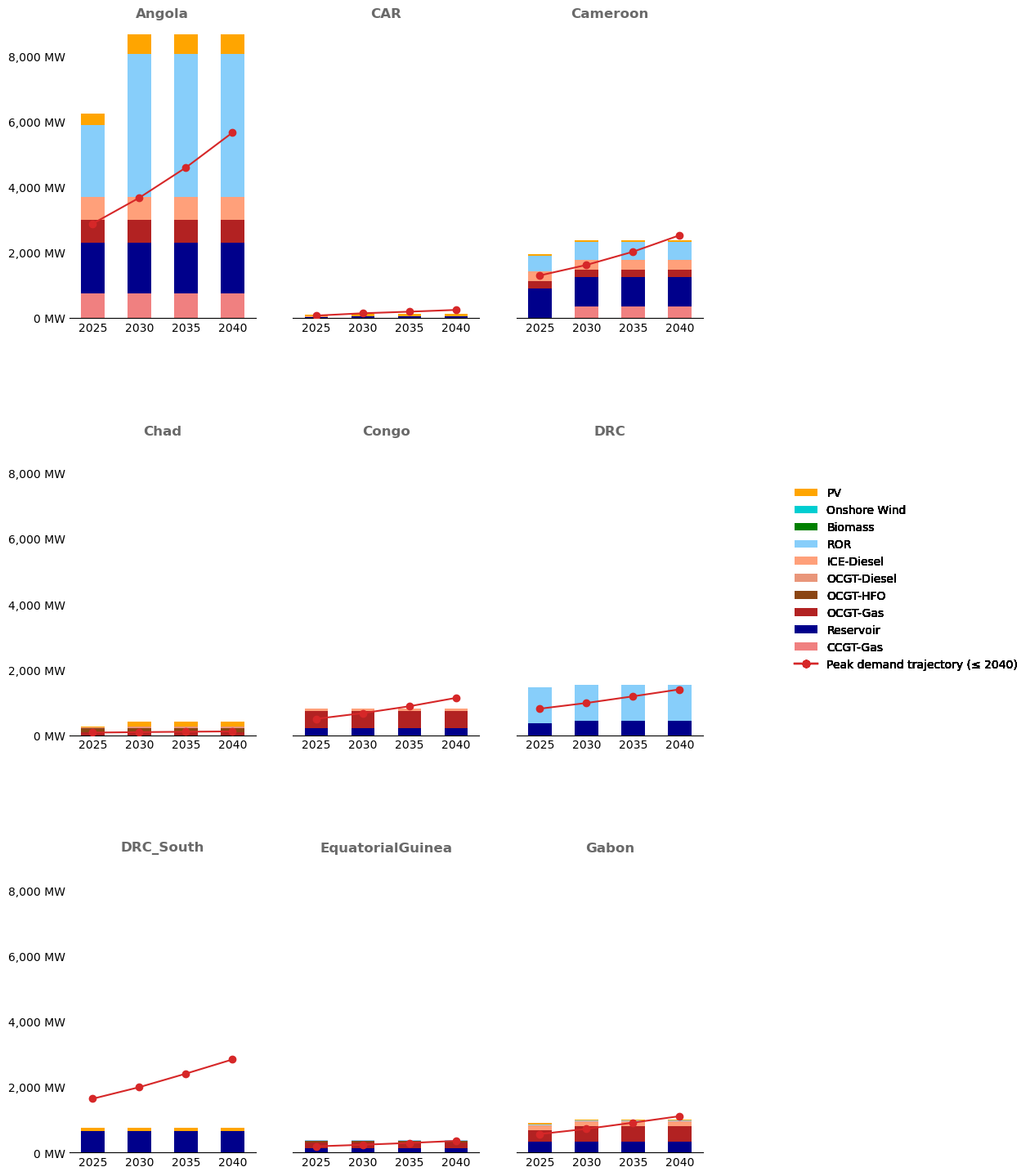

Step 4a – Plot capacity stacks against peak demand

from postprocessing.plots import make_stacked_barplot, set_default_fuel_order

if capacity_mix.empty:
    raise ValueError("No capacity data available after filtering statuses 1 and 2.")
if energy_mix.empty:
    raise ValueError("No energy data available after filtering statuses 1 and 2.")

order_years = model_years
set_default_fuel_order(fuel_ordering)

make_stacked_barplot(
    capacity_mix,
    filename=None,
    dict_colors=color_lookup,
    overlay_df=peak_demand,
    legend_label=f"Peak demand trajectory (≤ {TARGET_YEAR})",
    column_subplot='zone',
    column_stacked='fuel',
    column_xaxis='year',
    column_value='value',
    annotate=False,
    order_scenarios=order_years,
    order_stacked=fuel_ordering,
    format_y=lambda value, _: f"{value:,.0f} MW"
)

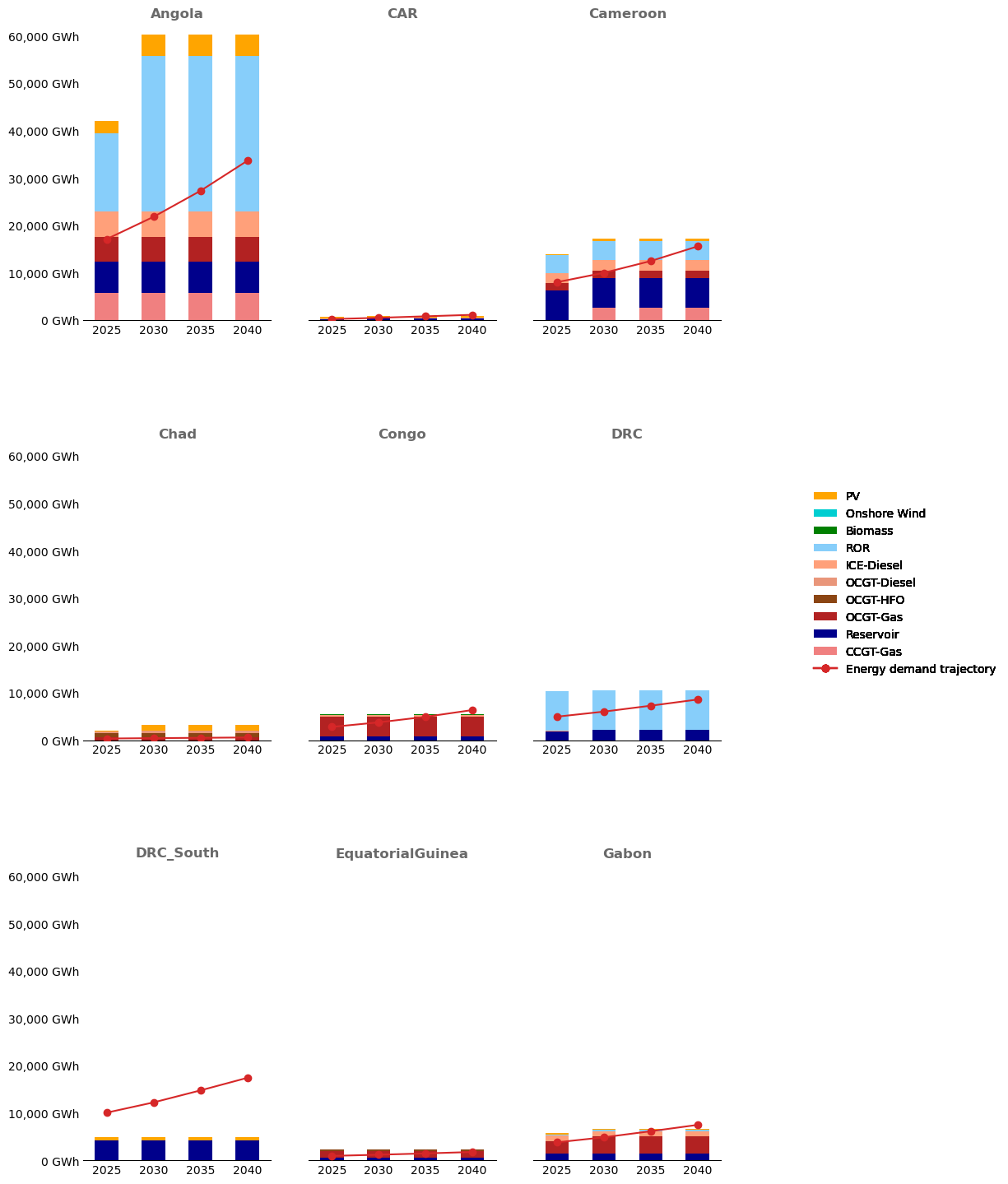

Step 4b – Plot energy stacks against annual demand

make_stacked_barplot(
    energy_mix,
    filename=None,
    dict_colors=color_lookup,
    overlay_df=energy_demand,
    legend_label=f"Energy demand trajectory",
    column_subplot='zone',
    column_stacked='fuel',
    column_xaxis='year',
    column_value='value',
    annotate=False,
    order_scenarios=order_years,
    order_stacked=fuel_ordering,
    format_y=lambda value, _: f"{value:,.0f} GWh"
)

Step 5 – System overview

Aggregate the zone results into a single system-level stack to compare nationwide supply with demand.

Step 5a – Aggregate mixes to the system level

system_capacity_mix = (
    capacity_mix.groupby(['fuel', 'year'], observed=False)['value']
    .sum()
    .reset_index()
    .assign(zone='System')
)

system_energy_mix = (
    energy_mix.groupby(['fuel', 'year'], observed=False)['value']
    .sum()
    .reset_index()
    .assign(zone='System')
)

system_peak_demand = (
    peak_demand.groupby('year', observed=False)['value']
    .sum()
    .reset_index()
    .assign(zone='System')
)

system_energy_demand = (
    energy_demand.groupby('year', observed=False)['value']
    .sum()
    .reset_index()
    .assign(zone='System')
)

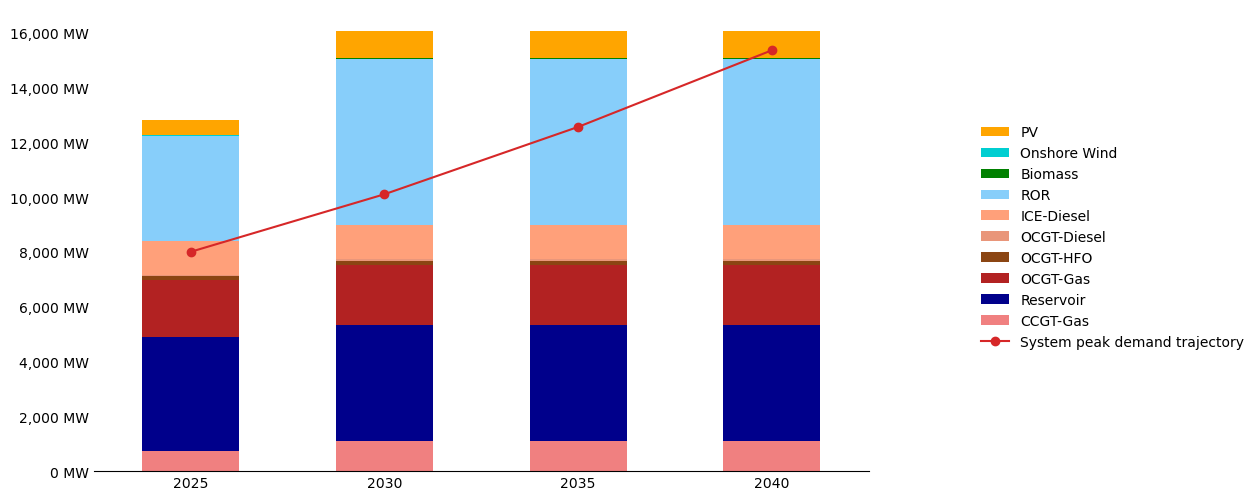

Step 5b – Plot system capacity versus peak demand

make_stacked_barplot(
    system_capacity_mix,
    filename=None,
    dict_colors=color_lookup,
    overlay_df=system_peak_demand,
    legend_label=f"System peak demand trajectory",
    column_subplot='zone',
    column_stacked='fuel',
    column_xaxis='year',
    column_value='value',
    order_scenarios=model_years,
    order_stacked=fuel_ordering,
    annotate=False,
    format_y=lambda value, _: f"{value:,.0f} MW"
)

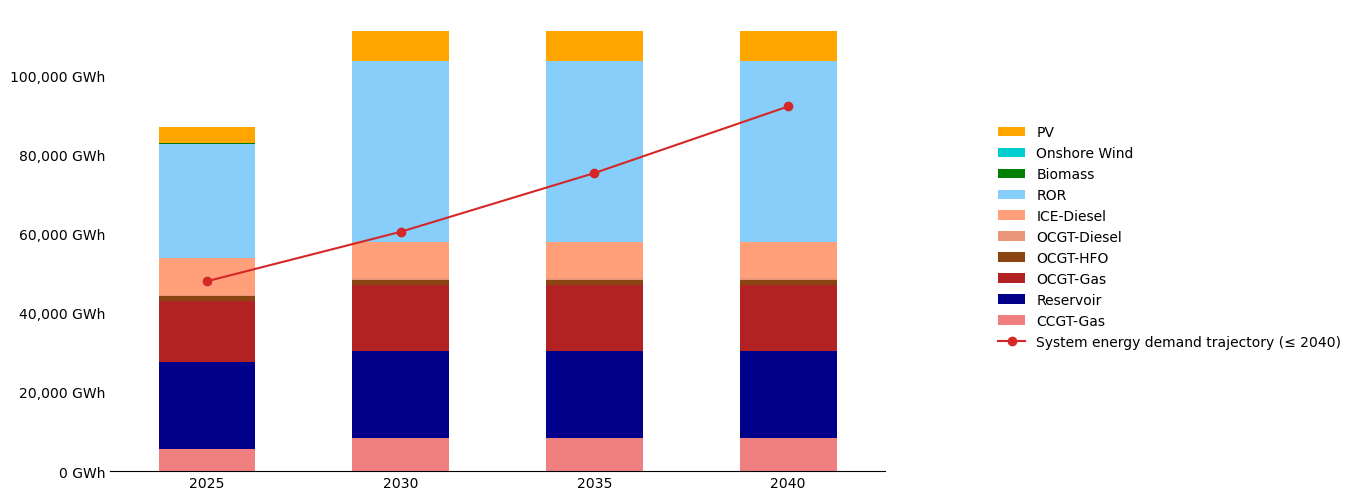

Step 5c – Plot system energy versus annual demand

make_stacked_barplot(
    system_energy_mix,
    filename=None,
    dict_colors=color_lookup,
    overlay_df=system_energy_demand,
    legend_label=f"System energy demand trajectory (≤ {TARGET_YEAR})",
    column_subplot='zone',
    column_stacked='fuel',
    column_xaxis='year',
    column_value='value',
    order_scenarios=model_years,
    order_stacked=fuel_ordering,
    annotate=False,
    format_y=lambda value, _: f"{value:,.0f} GWh"
)

Notes

• Update folder_input above if you want to explore a different dataset.

• Tweak TARGET_YEAR in Step 3 if you need a longer or shorter planning horizon.

• Re-run the cells sequentially after any data changes to refresh the plots.
