Hydro Availability Builder#

Objective

  • Transform monthly reservoir and run-of-river (ROR) hydro profiles into the seasonal and hourly availability CSVs (pAvailabilityCustom.csv and pVREgenProfile.csv) required by EPM.

  • Ensure consistency with pGenDataInput and complete if necessary.

Data requirements (user-provided) and method

  • Data requirements: Monthly capacity-factor CSVs per plant/zone (default input/hydro_profile_dry.csv), plant metadata fields (gen, zone, tech), and the official pHours.csv template from epm/input/ to align the season-daytype-hour structure.

  • Method: Validate inputs, align them with the pHours calendar, aggregate reservoir series to seasonal capacity factors, reshape ROR series into the long hourly format, and export review-ready CSVs.

Overview of steps

  1. Step 1 - Capture the user inputs describing folders, scenario tags, and technology filters.

  2. Step 2 - Create the working/output folders and load the template layout.

  3. Step 3 - Load the hydro profiles plus the pHours calendar.

  4. Step 4 - Cross-check hydro coverage against pGenDataInput to flag missing capacity-factor rows.

  5. Step 5 - Process reservoir and ROR data into the pAvailabilityCustom and pVREgenProfile tables, then save them for QA.

1. User Inputs#

Fill these once and rerun if you need to change the source data or template. Files are resolved relative to pre-analysis/prepare-data/.

# Path to the monthly hydro profile CSV stored under `input/`
input_profile_filename = 'hydro_profile_baseline.csv'

# Folder under `epm/input/` containing the scenario-specific inputs
folder_epm_input = 'data_capp'

# Filenames relative to `epm/input/<folder_epm_input>/`
hours_template_filename = 'pHours.csv'
pGenDataInput_filename = 'pGenDataInput.csv'

# Optional: list the zones to process (e.g. ['Angola', 'Cameroon']). Leave empty to include every zone found in the hydro profile.
zones = ['Angola', 'Cameroon', 'CAR', 'Chad', 'Congo', 'DRC', 'EquatorialGuinea', 'Gabon', 'DRC_South']

# Month to season to consier
MONTH_TO_SEASON = {
    1: '2', 2: '2', 3: '2',
    4: '2', 5: '1', 6: '1',
    7: '1', 8: '1', 9: '1',
    10: '2', 11: '2', 12: '2',
}

2. Setup: imports, folders, and helpers#

Run once to load libraries and create the working folders referenced later in the notebook.

import os
from pathlib import Path

import pandas as pd
import matplotlib.pyplot as plt

folder_input = 'input'
folder_output = 'output'
os.makedirs(folder_output, exist_ok=True)
print(f'Input folder: {folder_input}')
print(f'Output folder: {folder_output}')

Input folder: input
Output folder: output

3. Load hydro profiles and the pHours template#

Validates the user inputs, loads the monthly hydro profiles, and reads the pHours layout that drives the seasonal/daytype structure.

input_path = Path(folder_input) / input_profile_filename
if not input_path.exists():
    raise FileNotFoundError(f'Cannot find {input_path}. Double-check `input_profile_filename`.')

hydro_data = pd.read_csv(input_path, index_col=None, header=0, encoding='latin1') # latin1 #utf-8-sig
for col in ('gen', 'zone', 'tech'):
    if col in hydro_data.columns:
        hydro_data[col] = hydro_data[col].astype(str).str.strip()

zone_candidates = []
if isinstance(zones, str):
    zone_candidates = [chunk.strip() for chunk in zones.split(',') if chunk.strip()]
elif zones is None:
    zone_candidates = []
else:
    try:
        iterator = iter(zones)
    except TypeError:
        zone_str = str(zones).strip()
        zone_candidates = [zone_str] if zone_str else []
    else:
        for value in iterator:
            if value is None:
                continue
            zone_str = str(value).strip()
            if zone_str:
                zone_candidates.append(zone_str)

available_zones = set(hydro_data['zone'].dropna().unique())
if zone_candidates:
    missing_zones = sorted(set(zone_candidates) - available_zones)
    if missing_zones:
        print(f"Warning: the following zones are not present in {input_path.name} and will be ignored: {', '.join(missing_zones)}")
    hydro_data = hydro_data[hydro_data['zone'].isin(zone_candidates)].copy()
    if hydro_data.empty:
        raise ValueError('No hydro rows remain after applying the `zones` filter. Update `zones` to match the data.')

selected_zones = sorted(hydro_data['zone'].dropna().unique())
if not selected_zones:
    raise ValueError('No valid zone entries found in the hydro profile. Ensure the `zone` column is populated.')
if zone_candidates:
    print(f"Filtering hydro profile to {len(selected_zones)} zone(s): {', '.join(selected_zones)}")
else:
    print(f"No `zones` filter supplied; using all {len(selected_zones)} zone(s): {', '.join(selected_zones)}")

value_columns = [col for col in hydro_data.columns if col not in ('gen', 'zone', 'tech')]
if not value_columns:
    raise ValueError('The hydro profile file does not contain any monthly capacity-factor columns.')

print(f'Loaded hydro profile: {input_path.name} with {len(hydro_data)} rows after filtering')

epm_input_root = Path('../../epm/input')
hours_template_file = Path(os.path.join(str(epm_input_root), folder_epm_input, hours_template_filename))
if not hours_template_file.exists():
    raise FileNotFoundError(f'Cannot find {hours_template_file}. Update `hours_template_filename` or `folder_epm_input`.')

template = pd.read_csv(hours_template_file)
print(f'Loaded pHours template from {hours_template_file}')

pGenDataInput_file = Path(os.path.join(str(epm_input_root), folder_epm_input, 'supply', pGenDataInput_filename))
if pGenDataInput_file is None:
    raise FileNotFoundError('Cannot find pGenDataInput in the scenario folder (checked root and `supply/`).')

pgen_data = pd.read_csv(pGenDataInput_file, encoding='utf-8-sig')
for col in ('gen', 'zone', 'tech', 'fuel'):
    if col in pgen_data.columns:
        pgen_data[col] = pgen_data[col].astype(str).str.strip()

print(f'Loaded pGenDataInput from {pGenDataInput_file}')

Warning: the following zones are not present in hydro_profile_baseline.csv and will be ignored: Chad
Filtering hydro profile to 8 zone(s): Angola, CAR, Cameroon, Congo, DRC, DRC_South, EquatorialGuinea, Gabon
Loaded hydro profile: hydro_profile_baseline.csv with 97 rows after filtering
Loaded pHours template from ../../epm/input/data_capp/pHours.csv
Loaded pGenDataInput from ../../epm/input/data_capp/supply/pGenDataInput.csv

4. Validate generators against pGenDataInput#

Compare the hydro units included in the monthly capacity-factor file with those defined in pGenDataInput so any gaps can be filled before exporting the availability tables.

profile_gens = hydro_data['gen'].astype(str).str.strip()
profile_gen_set = set(profile_gens)
profile_zone_lookup = hydro_data.assign(gen=profile_gens, zone=hydro_data['zone'].astype(str).str.strip()).set_index('gen')['zone'].to_dict()

hydro_mask = pgen_data['fuel'].astype(str).str.contains('Water', case=False, na=False) * pgen_data['Status'].isin([1, 2, 3])
pgen_hydro = pgen_data[hydro_mask].copy()
pgen_hydro['gen'] = pgen_hydro['gen'].astype(str).str.strip()
pgen_hydro['zone'] = pgen_hydro['zone'].astype(str).str.strip()
selected_zone_set = set(selected_zones) if 'selected_zones' in globals() else set()
if selected_zone_set:
    pgen_hydro = pgen_hydro[pgen_hydro['zone'].isin(selected_zone_set)].copy()

pgen_gen_set = set(pgen_hydro['gen'])
zone_lookup = pgen_hydro.set_index('gen')['zone'].to_dict()

missing_profiles = sorted(pgen_gen_set - profile_gen_set)
missing_in_pgen = sorted(profile_gen_set - pgen_gen_set)

zone_peer_map = (
    hydro_data.assign(gen=profile_gens, zone=hydro_data['zone'].astype(str).str.strip())
        .groupby('zone')['gen']
        .apply(lambda s: sorted(s.tolist()))
        .to_dict()
)

numeric_matrix = hydro_data[['zone', 'gen']].copy()
numeric_matrix['tech'] = hydro_data['tech'].astype(str).str.strip()
for col in value_columns:
    numeric_matrix[col] = pd.to_numeric(hydro_data[col], errors='coerce')

zone_cf_template = numeric_matrix.groupby('zone')[value_columns].mean()
zone_tech_cf_template = (
    numeric_matrix.dropna(subset=['tech'])
        .groupby(['zone', 'tech'])[value_columns]
        .mean()
)
zone_avg_cf = zone_cf_template.mean(axis=1).to_dict()
zone_tech_avg_cf = zone_tech_cf_template.mean(axis=1).to_dict()

if missing_profiles:
    print(f"{len(missing_profiles)} hydro generators are defined in pGenDataInput but missing capacity-factor profiles:")
    impacted_zones = set()
    for gen in missing_profiles:
        zone = zone_lookup.get(gen, 'Unknown')
        impacted_zones.add(zone)
        peers = [peer for peer in zone_peer_map.get(zone, []) if peer != gen]
        tech = 'Unknown'
        if 'tech' in pgen_hydro.columns:
            tech = pgen_hydro.loc[pgen_hydro['gen'] == gen, 'tech']
            tech = tech.iloc[0] if not tech.empty else 'Unknown'
        avg_cf = zone_tech_avg_cf.get((zone, tech))
        avg_source = f"zone {zone} ({tech})" if pd.notna(avg_cf) else None
        if avg_source is None:
            avg_cf = zone_avg_cf.get(zone)
            avg_source = f"zone {zone}"
        if peers and pd.notna(avg_cf):
            print(f"  - {gen} (zone {zone}, tech {tech}): add values by averaging existing hydro in {avg_source} ({', '.join(peers)}) → suggested mean CF {avg_cf:.3f}.")
        else:
            print(f"  - {gen} (zone {zone}, tech {tech}): no peer hydro available; please enter CFs manually.")
    available_zones = sorted(zone for zone in impacted_zones if zone in zone_cf_template.index)
    if available_zones:
        print('Zone-average monthly profiles for the impacted zones:')
        display(zone_cf_template.loc[available_zones].round(3))
else:
    print('All hydro generators in pGenDataInput have matching capacity-factor profiles.')



if missing_in_pgen:
    print(f"{len(missing_in_pgen)} generators have capacity-factor rows here but are missing from pGenDataInput:")
    for gen in missing_in_pgen:
        zone = profile_zone_lookup.get(gen, 'Unknown')
        print(f"  - {gen} (zone {zone}): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.")
else:
    print('No extra hydro capacity-factor rows beyond what pGenDataInput expects.')

13 hydro generators are defined in pGenDataInput but missing capacity-factor profiles:
  - Bikomo (zone EquatorialGuinea, tech ROR): add values by averaging existing hydro in zone EquatorialGuinea (Djibloho, Djibloho 2, Sendje) → suggested mean CF 0.517.
  - Bongolo (zone Gabon, tech ReservoirHydro): add values by averaging existing hydro in zone Gabon (ReservoirHydro) (BoouŽ, Chute de Tsamba, Chutes de l'Imperatrice, Defile de Mitoungou, Dibwangui, FE-2 (Kinguele Aval), Grand Poubara, Kinguele, Kongue, Kouata Mango, Lifouta, Ngoulmendjim, Poubara, Tchimbele, Tsengue Leledi) → suggested mean CF 0.524.
  - Booue (zone Gabon, tech ReservoirHydro): add values by averaging existing hydro in zone Gabon (ReservoirHydro) (BoouŽ, Chute de Tsamba, Chutes de l'Imperatrice, Defile de Mitoungou, Dibwangui, FE-2 (Kinguele Aval), Grand Poubara, Kinguele, Kongue, Kouata Mango, Lifouta, Ngoulmendjim, Poubara, Tchimbele, Tsengue Leledi) → suggested mean CF 0.524.
  - Bousanga (zone DRC_South, tech ReservoirHydro): add values by averaging existing hydro in zone DRC_South (ReservoirHydro) (Koni, Mwadingusha, Nseke, Nzilo, Nzilo 2) → suggested mean CF 0.649.
  - Kilubi (zone DRC_South, tech ReservoirHydro): add values by averaging existing hydro in zone DRC_South (ReservoirHydro) (Koni, Mwadingusha, Nseke, Nzilo, Nzilo 2) → suggested mean CF 0.649.
  - Mitoungou (zone Gabon, tech ReservoirHydro): add values by averaging existing hydro in zone Gabon (ReservoirHydro) (BoouŽ, Chute de Tsamba, Chutes de l'Imperatrice, Defile de Mitoungou, Dibwangui, FE-2 (Kinguele Aval), Grand Poubara, Kinguele, Kongue, Kouata Mango, Lifouta, Ngoulmendjim, Poubara, Tchimbele, Tsengue Leledi) → suggested mean CF 0.524.
  - Moukouloukou (zone Congo, tech ReservoirHydro): add values by averaging existing hydro in zone Congo (ReservoirHydro) (Chollet (Cameroon), Chollet (Congo), Djoue Rebuild, Imboulou, Kouembali, Liouesso, Moukoukoulou, Mourala, Mpoukou, Nyanga, Sounda Gorge) → suggested mean CF 0.453.
  - Nzongo (zone DRC, tech ReservoirHydro): add values by averaging existing hydro in zone DRC (ReservoirHydro) (Bendera, Inga, Inga 1, Inga 2, Inga 3, Kakobola, Katende, Kimbombo, Mambilima I, Mambilima II, Mambilima V, Mbamba, Mobayi, Mumbotuta CX, Mumbotuta M, Portes d'enfer, Sanga, Sombwe, Totshi, Ubangui, Wanie Rukula, Zongo 1, Zongo 2) → suggested mean CF 0.560.
  - Nzongoii (zone DRC, tech ReservoirHydro): add values by averaging existing hydro in zone DRC (ReservoirHydro) (Bendera, Inga, Inga 1, Inga 2, Inga 3, Kakobola, Katende, Kimbombo, Mambilima I, Mambilima II, Mambilima V, Mbamba, Mobayi, Mumbotuta CX, Mumbotuta M, Portes d'enfer, Sanga, Sombwe, Totshi, Ubangui, Wanie Rukula, Zongo 1, Zongo 2) → suggested mean CF 0.560.
  - Nzoro (zone DRC, tech ReservoirHydro): add values by averaging existing hydro in zone DRC (ReservoirHydro) (Bendera, Inga, Inga 1, Inga 2, Inga 3, Kakobola, Katende, Kimbombo, Mambilima I, Mambilima II, Mambilima V, Mbamba, Mobayi, Mumbotuta CX, Mumbotuta M, Portes d'enfer, Sanga, Sombwe, Totshi, Ubangui, Wanie Rukula, Zongo 1, Zongo 2) → suggested mean CF 0.560.
  - Quilengue (zone Angola, tech ROR): add values by averaging existing hydro in zone Angola (ROR) (AH Mabubas, Baynes, Cacula Cabasa, Cafula (Keve), Calengue (Catumbela), Cambambe, Capanda, Gove, Jamba Ya Mina, Jamba Ya Oma, Lauca, Lomaum, Lomaum 2, Luachimo, Matala, Quilengue (Balalunga), Tchiumbwe Dala, Tumuludo Casador, Vuka Hydropower, Zenzo Hydropower) → suggested mean CF 0.406.
  - Riaba (zone EquatorialGuinea, tech ROR): add values by averaging existing hydro in zone EquatorialGuinea (Djibloho, Djibloho 2, Sendje) → suggested mean CF 0.517.
  - Soleniama (zone DRC, tech ReservoirHydro): add values by averaging existing hydro in zone DRC (ReservoirHydro) (Bendera, Inga, Inga 1, Inga 2, Inga 3, Kakobola, Katende, Kimbombo, Mambilima I, Mambilima II, Mambilima V, Mbamba, Mobayi, Mumbotuta CX, Mumbotuta M, Portes d'enfer, Sanga, Sombwe, Totshi, Ubangui, Wanie Rukula, Zongo 1, Zongo 2) → suggested mean CF 0.560.

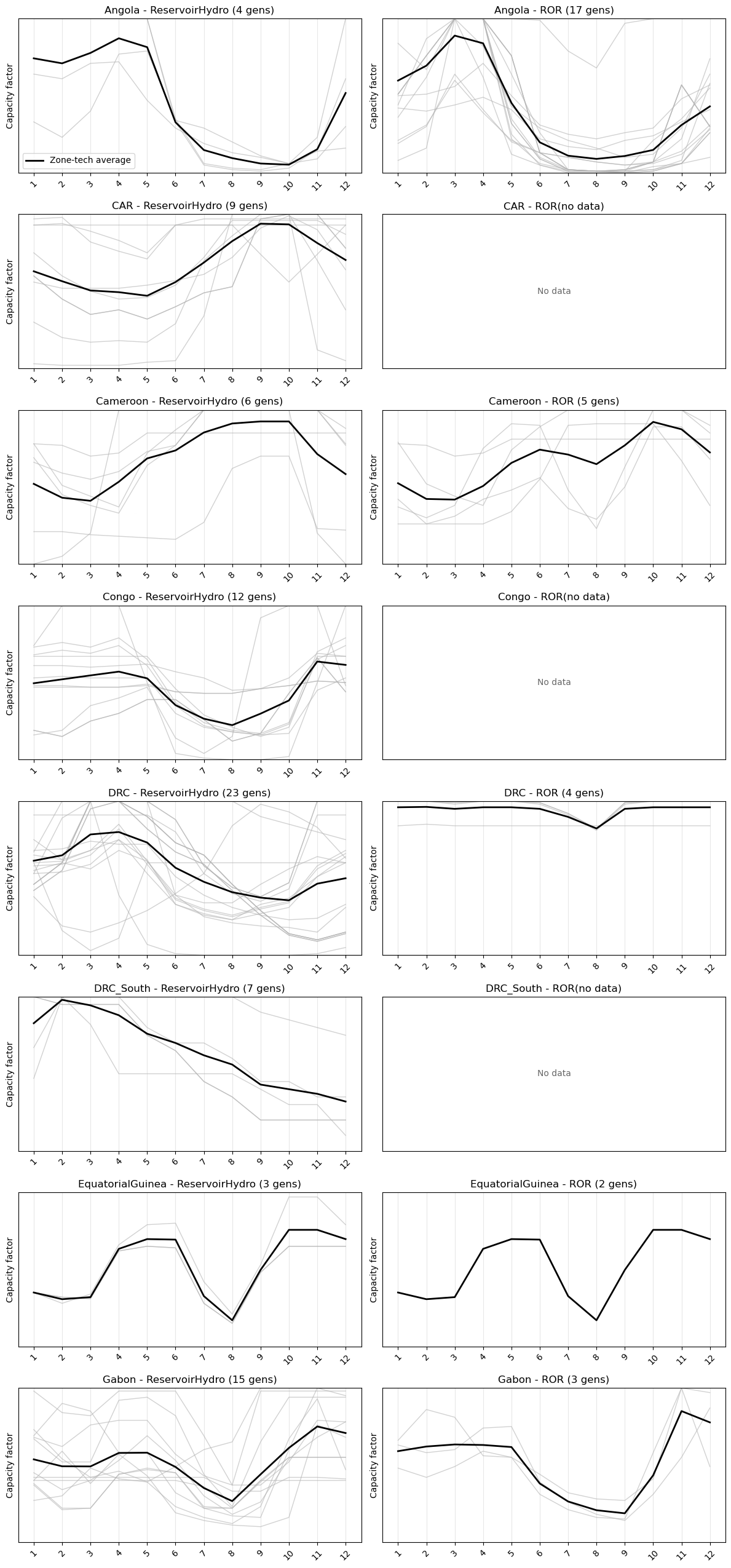

Zone-average monthly profiles for the impacted zones:
1 2 3 4 5 6 7 8 9 10 11 12
zone
Angola 0.627 0.698 0.868 0.846 0.526 0.223 0.118 0.091 0.099 0.129 0.278 0.448
Congo 0.495 0.521 0.546 0.571 0.527 0.354 0.265 0.224 0.298 0.384 0.636 0.615
DRC 0.673 0.703 0.813 0.827 0.771 0.634 0.550 0.481 0.474 0.461 0.550 0.580
DRC_South 0.828 0.980 0.944 0.880 0.760 0.700 0.620 0.560 0.430 0.400 0.370 0.320
EquatorialGuinea 0.350 0.307 0.320 0.633 0.697 0.693 0.327 0.170 0.497 0.757 0.757 0.697
Gabon 0.547 0.517 0.519 0.589 0.587 0.466 0.333 0.254 0.389 0.575 0.770 0.721
19 generators have capacity-factor rows here but are missing from pGenDataInput:
  - Bac + Lotomo (zone CAR): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Bendera (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - BoouŽ (zone Gabon): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Defile de Mitoungou (zone Gabon): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Djibloho 2 (zone EquatorialGuinea): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Djoue Rebuild (zone Congo): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Inga (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Kimbombo (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mambilima I (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mambilima II (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mambilima V (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mbamba (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Moukoukoulou (zone Congo): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mumbotuta CX (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Mumbotuta M (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Nzilo 2 (zone DRC_South): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Portes d'enfer (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Quilengue (Balalunga) (zone Angola): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.
  - Totshi (zone DRC): either remove it from the hydro profile or add the unit to pGenDataInput so EPM can use it.

4b - Build zone-average placeholders for missing generators#

# Build placeholder monthly capacity-factor profiles for generators missing in the hydro file.
derived_cf_profiles = pd.DataFrame(columns=['gen', 'zone', 'tech', *value_columns])
if missing_profiles:
    tech_lookup = {}
    if not pgen_hydro.empty and 'tech' in pgen_hydro.columns:
        tech_lookup = (
            pgen_hydro.assign(tech=pgen_hydro['tech'].astype(str).str.strip())
            .set_index('gen')['tech']
            .to_dict()
        )

    fill_rows = []
    skipped_missing = []
    for gen in missing_profiles:
        zone = zone_lookup.get(gen, 'Unknown')
        tech = tech_lookup.get(gen, 'Unknown')
        template_key = (zone, tech)
        zone_profile = None
        if template_key in zone_tech_cf_template.index:
            zone_profile = zone_tech_cf_template.loc[template_key]
        elif zone in zone_cf_template.index:
            zone_profile = zone_cf_template.loc[zone]
        if zone_profile is None:
            skipped_missing.append(gen)
            continue

        row = {
            'gen': gen,
            'zone': zone,
            'tech': tech,
        }
        for col in value_columns:
            row[col] = zone_profile[col]
        fill_rows.append(row)

    if fill_rows:
        derived_cf_profiles = pd.DataFrame(fill_rows, columns=['gen', 'zone', 'tech', *value_columns])
        print(f'Prepared placeholders for {len(derived_cf_profiles)} generator(s) using zone/technology averages.')
        display(derived_cf_profiles.head())
    else:
        print('Missing generators detected but no zone or zone-tech averages available to build placeholders.')

    if skipped_missing:
        print('Skipped generators without valid averages:', ', '.join(skipped_missing))
else:
    print('No missing hydro generators -> placeholder DataFrame empty.')

Prepared placeholders for 13 generator(s) using zone/technology averages.
gen zone tech 1 2 3 4 5 6 7 8 9 10 11 12
0 Bikomo EquatorialGuinea ROR 0.350000 0.306667 0.320000 0.633333 0.696667 0.693333 0.326667 0.170000 0.496667 0.756667 0.756667 0.696667
1 Bongolo Gabon ReservoirHydro 0.536667 0.491667 0.490833 0.578333 0.580000 0.487500 0.350833 0.265833 0.439167 0.610833 0.750000 0.707500
2 Booue Gabon ReservoirHydro 0.536667 0.491667 0.490833 0.578333 0.580000 0.487500 0.350833 0.265833 0.439167 0.610833 0.750000 0.707500
3 Bousanga DRC_South ReservoirHydro 0.828000 0.980000 0.944000 0.880000 0.760000 0.700000 0.620000 0.560000 0.430000 0.400000 0.370000 0.320000
4 Kilubi DRC_South ReservoirHydro 0.828000 0.980000 0.944000 0.880000 0.760000 0.700000 0.620000 0.560000 0.430000 0.400000 0.370000 0.320000

4c - Completed hydro capacity-factor profile and QA plots#

# Combine the original hydro profiles with any derived zone-average placeholders.
cf_profile_completed = hydro_data.copy()
if not derived_cf_profiles.empty:
    cf_profile_completed = pd.concat([hydro_data, derived_cf_profiles], ignore_index=True)

cf_profile_completed[value_columns] = cf_profile_completed[value_columns].apply(pd.to_numeric, errors='coerce')
cf_profile_completed = cf_profile_completed.drop_duplicates(subset=['gen']).sort_values(['zone', 'gen']).reset_index(drop=True)

print(f"Completed capacity-factor table contains {len(cf_profile_completed)} generator rows across {cf_profile_completed['zone'].nunique()} zone(s).")
display(cf_profile_completed.head())

completed_gen_set = set(cf_profile_completed['gen'])
remaining_missing = sorted(pgen_gen_set - completed_gen_set)
if remaining_missing:
    preview = ', '.join(remaining_missing[:10])
    more = '...' if len(remaining_missing) > 10 else ''
    print(f"Still missing {len(remaining_missing)} generator(s) after filling: {preview}{more}")
else:
    print('All hydro generators defined in pGenDataInput now have capacity-factor rows.')


# Plot monthly capacity factors with zone/technology averages.
zones_to_plot = sorted(cf_profile_completed['zone'].dropna().unique())
tech_columns = ['ReservoirHydro', 'ROR']
if not zones_to_plot:
    print('No zones available for plotting capacity-factor profiles.')
else:
    fig, axes = plt.subplots(len(zones_to_plot), len(tech_columns), figsize=(6 * len(tech_columns), 3.2 * len(zones_to_plot)), squeeze=False, sharey=True)
    legend_drawn = False

    for row_idx, zone in enumerate(zones_to_plot):
        for col_idx, tech in enumerate(tech_columns):
            ax = axes[row_idx][col_idx]
            mask = (cf_profile_completed['zone'] == zone) & (cf_profile_completed['tech'] == tech)
            zone_tech_df = cf_profile_completed[mask]

            if zone_tech_df.empty:
                ax.set_title(f"{zone} - {tech}(no data)")
                ax.set_xticks([])
                ax.set_yticks([])
                ax.text(0.5, 0.5, 'No data', ha='center', va='center', transform=ax.transAxes, fontsize=10, color='0.4')
                continue

            zone_values = zone_tech_df[value_columns].astype(float)
            for _, row in zone_values.iterrows():
                ax.plot(value_columns, row.values, color='0.7', linewidth=1, alpha=0.6)

            zone_avg = zone_values.mean(axis=0)
            ax.plot(value_columns, zone_avg.values, color='black', linewidth=2, label='Zone-tech average')

            ax.set_title(f"{zone} - {tech} ({len(zone_tech_df)} gens)")
            ax.set_xticks(range(len(value_columns)))
            ax.set_xticklabels(value_columns, rotation=45)
            ax.set_ylabel('Capacity factor')
            ax.set_ylim(0, 1)
            ax.grid(True, alpha=0.3)
            if not legend_drawn:
                ax.legend()
                legend_drawn = True

    fig.tight_layout()
    plt.show()

Completed capacity-factor table contains 110 generator rows across 8 zone(s).
zone gen tech 1 2 3 4 5 6 7 8 9 10 11 12
0 Angola AH Mabubas ROR 1.00 1.00 1.0 1.00 0.22 0.06 0.02 0.01 0.01 0.02 0.08 0.58
1 Angola Baynes ReservoirHydro 0.33 0.23 0.4 0.77 0.79 0.34 0.29 0.20 0.11 0.06 0.09 0.30
2 Angola Cacula Cabasa ROR 0.51 0.76 1.0 1.00 0.76 0.13 0.02 0.01 0.02 0.07 0.57 0.30
3 Angola Cafula (Keve) ROR 0.84 0.67 1.0 1.00 0.25 0.05 0.01 0.01 0.01 0.07 0.22 0.74
4 Angola Calengue (Catumbela) ROR 0.51 0.76 1.0 1.00 0.76 0.13 0.02 0.01 0.02 0.07 0.57 0.30
All hydro generators defined in pGenDataInput now have capacity-factor rows.
../../_images/a31a112fa32bcdd30130f6ed791ae7c738f85eb31a5c2462b04d48d9cc096596.png

5 - Process hydro availability#

5a - Build seasonal reservoir availability#

# Keep only Reservoir Hydro units and the monthly columns.
data_reservoir = cf_profile_completed[cf_profile_completed['tech'] == 'ReservoirHydro'].copy()
data_reservoir.set_index(['gen'], inplace=True)
data_reservoir.drop(columns=['zone', 'tech'], inplace=True)
data_reservoir.columns = data_reservoir.columns.astype(int)
display(data_reservoir.head())

# Convert months to seasons using MONTH_TO_SEASON and compute the mean for each season.
data_reservoir = data_reservoir.T.groupby(MONTH_TO_SEASON).mean().T

# Rename the season columns with the expected Q prefix and persist the output.
data_reservoir.columns = [f'Q{col}' for col in data_reservoir.columns]
data_reservoir.columns.names = ['season']
display(data_reservoir.head())

output_path_reservoir = os.path.join(folder_output, 'pAvailabilityCustom.csv')
data_reservoir.to_csv(output_path_reservoir)
print(f"Reservoir data processed and saved to {output_path_reservoir}")
1 2 3 4 5 6 7 8 9 10 11 12
gen
Baynes 0.33 0.23 0.40 0.77 0.79 0.34 0.29 0.20 0.11 0.06 0.09 0.30
Cambambe 1.00 1.00 1.00 1.00 1.00 0.33 0.05 0.02 0.01 0.03 0.15 0.61
Capanda 1.00 1.00 1.00 1.00 1.00 0.35 0.06 0.03 0.02 0.06 0.23 1.00
Gove 0.64 0.61 0.71 0.72 0.47 0.29 0.19 0.13 0.10 0.06 0.14 0.16
Bac + Lotomo 0.56 0.52 0.52 0.52 0.54 0.57 0.61 0.72 0.91 0.99 0.90 0.64
season Q1 Q2
gen
Baynes 0.346 0.311429
Cambambe 0.282 0.684286
Capanda 0.292 0.755714
Gove 0.236 0.434286
Bac + Lotomo 0.670 0.664286
Reservoir data processed and saved to output/pAvailabilityCustom.csv

5b - Format run-of-river hourly availability#

def build_ror_generation_profile(result, template):
    """Build the long-run hourly ROR profile expected by pVREgenProfile.csv."""

    # Flatten the seasonal input and broadcast each value across the template's hours.
    result_reset = result.reset_index()
    result_long = result_reset.melt(id_vars='gen', var_name='season', value_name='value')

    template_pairs = template[['season', 'daytype']].drop_duplicates().reset_index(drop=True)
    merged = result_long.merge(template_pairs, on='season', how='left')

    if merged['daytype'].isna().any():
        missing_seasons = ', '.join(sorted(merged.loc[merged['daytype'].isna(), 'season'].unique()))
        raise ValueError(f'Template is missing daytype definitions for: {missing_seasons}')

    hour_cols = [col for col in template.columns if col not in ('season', 'daytype')]
    for col in hour_cols:
        merged[col] = merged['value']

    merged_final = merged.drop(columns=['value'])
    ordered_cols = ['gen', 'season', 'daytype', *hour_cols]
    return merged_final[ordered_cols]

# Filter to Run-of-River units and retain monthly columns only.
data_ror = cf_profile_completed[cf_profile_completed['tech'] == 'ROR'].copy()
if data_ror.empty:
    print('No ROR generators found. Skipping pVREgenProfile export.')
else:
    data_ror.set_index(['gen'], inplace=True)
    data_ror.drop(columns=['zone', 'tech'], inplace=True)
    data_ror[value_columns] = data_ror[value_columns].apply(pd.to_numeric, errors='coerce')
    data_ror.columns = data_ror.columns.astype(int)
    display(data_ror.head())

    # Convert months to seasons and label them with the Q prefix.
    data_ror = data_ror.T.groupby(MONTH_TO_SEASON).mean().T
    display(data_ror.head())
    data_ror.columns = [f'Q{col}' for col in data_ror.columns]
    data_ror.columns.names = ['season']

    # Align with the template structure so downstream scripts can ingest the file directly.
    data_ror = build_ror_generation_profile(data_ror, template)
    column_order = ['gen', *template.columns.tolist()]
    data_ror = data_ror[column_order]
    display(data_ror.head())

    output_path_ror = os.path.join(folder_output, 'pVREgenProfile.csv')
    data_ror.to_csv(output_path_ror, index=False)
    print(f'ROR data processed and saved to {output_path_ror}')
1 2 3 4 5 6 7 8 9 10 11 12
gen
AH Mabubas 1.00 1.00 1.00 1.00 0.22 0.06 0.02 0.01 0.01 0.02 0.08 0.58
Cacula Cabasa 0.51 0.76 1.00 1.00 0.76 0.13 0.02 0.01 0.02 0.07 0.57 0.30
Cafula (Keve) 0.84 0.67 1.00 1.00 0.25 0.05 0.01 0.01 0.01 0.07 0.22 0.74
Calengue (Catumbela) 0.51 0.76 1.00 1.00 0.76 0.13 0.02 0.01 0.02 0.07 0.57 0.30
Jamba Ya Mina 0.19 0.30 0.64 0.41 0.20 0.13 0.10 0.07 0.05 0.07 0.14 0.31
1 2
gen
AH Mabubas 0.064 0.668571
Cacula Cabasa 0.188 0.601429
Cafula (Keve) 0.066 0.648571
Calengue (Catumbela) 0.188 0.601429
Jamba Ya Mina 0.110 0.294286
gen season daytype t1 t2 t3 t4 t5 t6 t7 ... t15 t16 t17 t18 t19 t20 t21 t22 t23 t24
0 AH Mabubas Q1 d1 0.064 0.064 0.064 0.064 0.064 0.064 0.064 ... 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064
1 AH Mabubas Q1 d2 0.064 0.064 0.064 0.064 0.064 0.064 0.064 ... 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064
2 AH Mabubas Q1 d3 0.064 0.064 0.064 0.064 0.064 0.064 0.064 ... 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064
3 AH Mabubas Q1 d4 0.064 0.064 0.064 0.064 0.064 0.064 0.064 ... 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064
4 AH Mabubas Q1 d5 0.064 0.064 0.064 0.064 0.064 0.064 0.064 ... 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064 0.064

5 rows × 27 columns

ROR data processed and saved to output/pVREgenProfile.csv
